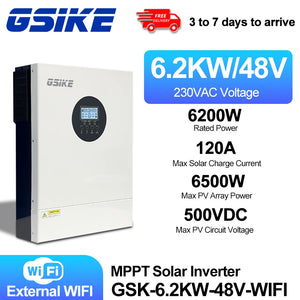

GSIKE Power 6.2KW Solar Inverter 48V 220V Off Grid Inverter 120A MPPT Solar Controller With WIFI
【All-in-One Design】Combines inverter, solar charger, and grid charger in one compact unit.
【Lithium Battery Communication Support】Compatible with popular lithium batteries like PYLON and PACE; auto-recognizes and activates the battery.
【Smart Power Switching】Supports solar-first, battery-first, or grid-first modes with automatic switching.
【Dual Output Function】Maintains power for essential loads when battery is low, enhancing safety and reliability.
【Rich LCD Display】Shows battery voltage, state of charge, temperature, and more at a glance.
【Comprehensive Protection】Built-in protections for overvoltage, undervoltage, overheating, overload, and more.
【Remote Monitoring Ready】Supports RS232, RS485, and WiFi for remote data access and system control.
Estimate delivery times: 3-7 days (European Union), 3-10 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
GSIKE Power 6.2KW Solar Inverter 48V 220V Off Grid Inverter 120A MPPT Solar Controller With WIFI
GSIKE 6.2KW 48V Hybrid Off-Grid Solar Inverter introduction
| MODEL | GSK-4KW-24V-WIFI | GSK-6.2KW-48V-WIFI |
|---|---|---|
| PHASE | 1-Phase In / 1-Phase Out | |
| Maximum PV Input Power | 4000W | 6500W |
| Maximum Main Output Power | 4000W/4000W | 6200W/6200W |
| Maximum Second Output Power | 4000W/4000W | 6200W/6200W |
| Maximum Total Output Power | 4000W/4000W | 6200W/6200W |
| Parallel Capability | NO | NO |
| Lithium Battery activation | YES (By PV or Utility) | YES (By PV or Utility) |
| Lithium Battery communication | YES(RS485) | YES(RS485) |
| Built-in WIFI | Optional | |
| AC INPUT | ||
| Nominal Voltage | 230VAC | |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) | |
| Frequency | 50/60 Hz (Auto sensing) | |
| AC OUTPUT | ||
| Nominal Voltage | 220/230VAC±5% | |
| Surge Power | 8000VA | 12400VA |
| Frequency | 50/60 Hz | |
| Waveform | Pure Sine wave | |
| Dual Outputs | Yes | |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) | |
| Peak Efficiency | 94% | |
| Overload Protection | 5s@>=140% load; 10s@100%-140% load | |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | |
| BATTERY | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| OverCharge Protection | 33VDC | 63VDC |
| Charging Method | CC/CV | |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger TYPE | MPPT | |
| Max.PV Array Power | 4000W | 6500W |
| Max.PV Array Open Circuit Voltage | 500VDC | |
| PV Array MPPT Voltage Range | 30VDC-500VDC | |
| Max.Solar Input Current | 1/15A | 1/27A |
| Max.Solar Charge Current | 100A | 120A |
| Max.AC Charge Current | 80A | 80A |
| Max.Charge Current | 100A | 120A |
| PHYSICAL | ||
| Dimensions, D x W x H(mm) | 368x312x105.5 | 438x312x122 |
| Net Weight(Kgs) | 6.7 | 11 |
| Communication Interface | RS485(RJ45)/RS232(DB9) | |
| ENVIRONMENT | ||
| Operating Temperature Range | -10°C to 50°C | |
| Storage temperature | -15°C - 60°C | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Ingress Protection | IP21 | |

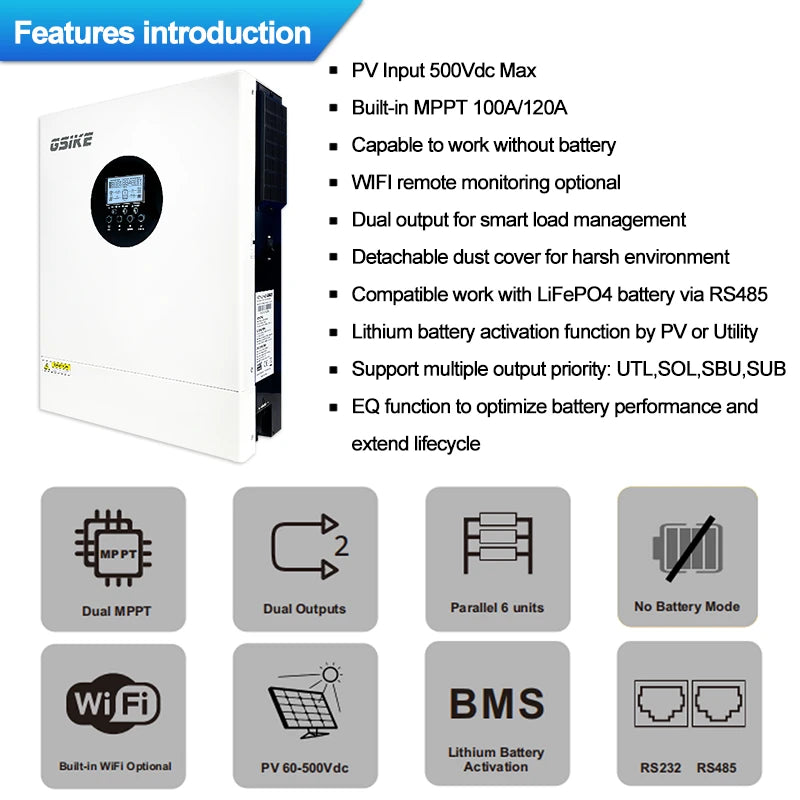

Powerful Performance — Built for High-Demand Loads
Runs without battery, supports lithium activation Dual MPPT, PV range 60–500VDC AC/Solar priority & adjustable charge current RS485/RS232 + optional WiFi monitoring Overload, over-temp & short-circuit protection Grid & Generator Compatible
Battery Optional, Versatile Compatibility
Operates without a battery – perfect for lightweight off-grid setups Fully compatible with Lead-acid, LiFePO₄, and smart BMS batteries Dry contact function allows integration with diesel generators or ATS systems Seamlessly fits into different energy configurations: homes, farms, warehouses

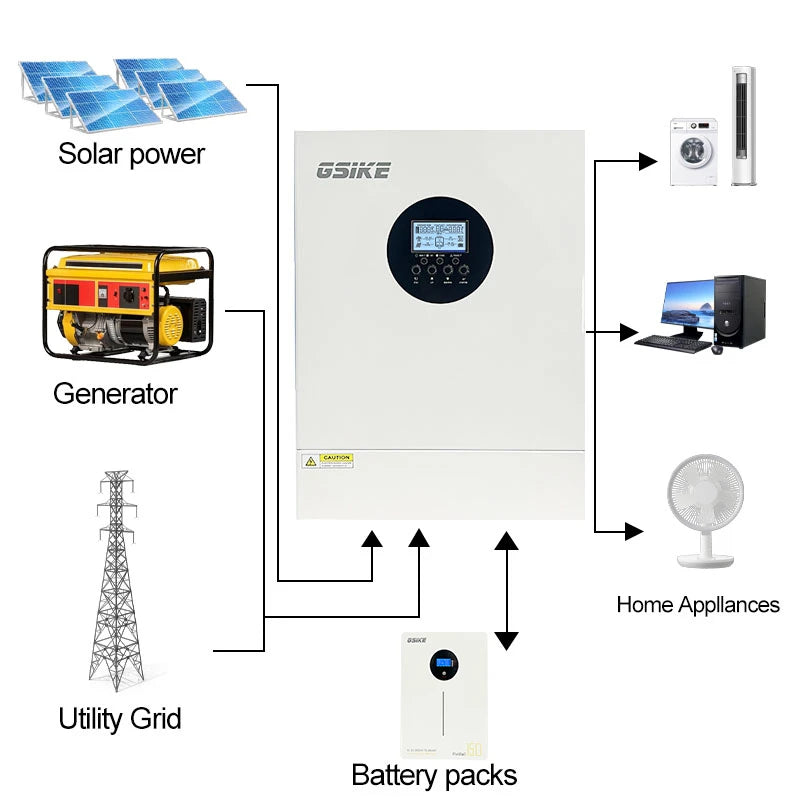

Flexible Deployment & Hybrid Compatibility
Integrates easily with solar, generator, or grid power for hybrid systems Supports multiple output priority modes: UTL / SOL / SUB / SBU Easy to expand and maintain, designed for long-term stable operation
Smart Monitoring & Dual Output Control
Dual MPPT inputs maximize solar harvesting efficiency Built-in programmable dual output ports for separating critical and general loads WiFi & RS485 communication for app and PC remote management Intuitive LCD + PC software with multilingual interface support
